Semi-remorque porte-engins Özgül 60 Ton 3 axle - LW3 AFR FIX neuf
Velddriel6534 km to "United States/Columbus"
Si vous décidez d'acheter un véhicule ou du matériel à bas prix, assurez-vous que vous communiquez avec un vendeur réel. Cherchez autant d'informations sur le propriétaire que possible. Un escroc peut se faire passer pour une société réelle. En cas de doute, contactez-nous en utilisant le formulaire de commentaires afin que nous effectuions un contrôle supplémentaire.
Avant d'effectuer un achat, étudiez attentivement plusieurs offres de vente afin de connaître le coût moyen du modèle de véhicule ou d'équipement que vous avez choisi. Si le prix de l'offre qui vous intéresse est très inférieur aux offres similaires, réfléchissez bien. Une différence de prix considérable peut indiquer la présence de défauts cachés ou une tentative d'escroquerie.
N'achetez pas de produits dont le prix est trop différent du prix moyen de produits similaires.
Ne consentez pas à payer une caution ou une avance douteuse. En cas de doute, n’hésitez pas à demander des précisions, des photos et des documents supplémentaires, vérifier l'authenticité des documents ou encore poser des questions.
C'est l'arnaque la plus répandue. Des vendeurs malhonnêtes peuvent demander une avance sur le montant total pour « réserver » votre achat. De cette manière, ils peuvent recueillir un montant considérable, puis disparaître.
- Faire un prépaiement sur la carte
- N'effectuez pas de prépaiement sans établir de documents confirmant le transfert d'argent si le vendeur vous semble suspect au cours de vos échanges.
- Transfert de l'argent sur le compte séquestre
- Méfiez-vous de ce genre de demandes, il est très probable que vous soyez en train de communiquer avec un fraudeur.
- Virement sur le compte d'une société avec un nom similaire
- Soyez vigilant(e), des fraudeurs peuvent se faire passer pour des entreprises connues en introduisant des modifications mineures dans le nom. Ne transférez pas d'argent en cas de doute sur le nom de l'entreprise.
- Substitution de ses propres coordonnées dans la facture d'une entreprise réelle
- Avant d'effectuer le virement, vérifiez que les coordonnées indiquées sont exactes et qu'elles appartiennent à l'entreprise indiquée.
Coordonnées du vendeur
+31 418 67...
Montrer
+31 418 674 545
+31 6 147...
Montrer
+31 6 14774141
Pays-Bas
12300 kg
Pays-Bas, Velddriel
12300 kg
Pays-Bas, Velddriel
12300 kg
Pays-Bas, Velddriel
12300 kg
Pays-Bas, Velddriel
12300 kg
Pays-Bas, Velddriel
13000 kg
Pays-Bas, Velddriel
112220 kg
Poids net à vide
22530 kg
Pays-Bas, Groot-Ammers
52200 kg
Poids net à vide
11800 kg
Pays-Bas, Geleen
30680 kg
Poids net à vide
10320 kg
Pays-Bas, Soerendonk
Pays-Bas, 's-Hertogenbosch
29660 kg
Poids net à vide
11340 kg
Pays-Bas, Hoogerheide
Pays-Bas, Veghel
38150 kg
Poids net à vide
9850 kg
Pays-Bas, Geleen
80500 kg
Poids net à vide
17000 kg
Pays-Bas, Roosendaal
Pays-Bas, Groot-Ammers
31400 kg
Poids net à vide
10600 kg
Pays-Bas, Groot-Ammers
27440 kg
Poids net à vide
14560 kg
Pays-Bas, Groot-Ammers
20600 kg
Poids net à vide
6600 kg
Pays-Bas, Gilze
34260 kg
Poids net à vide
13740 kg
Pays-Bas, Roosendaal
33840 kg
Poids net à vide
12160 kg
Pays-Bas, Groot-Ammers
Gross Vehicle Weight (kg) : 70.000 Loading Platform Length (mm) : 10.500
Weight of Axle Group (kg) : 48.000 Total Lenght (mm) : 14.900
Kingpin Capacity (kg) : 22.000 Total Width (mm) : 3.000
Curb Weight (kg) : 13.440 Loading Platform Height (mm) : 1.350
Pay Load (kg) : 60.000 Height of 5.th Wheel (mm) : 1.400
CONSTRUCTIONS
Base Chassis
Heavy duty and extra durability designed I type chassis All welded S355 steel
chassis. Outer frame is UPE 240 profile.
Welding (Chassis) : Automatic ARC submerged.
Welding (Superstructure) : Automatic robot welding.
Axle (Type) : Özgül Turkish Brand Drum brakes 3 x 16 Ton axles
Suspension (Type) : Mechanical leaf spring suspension / 12-14 lines
King pin (Type) : 1 position with 1x coupling-pen 2” (EU approved) Çayırova Brand. + 3.5 inch
Tires : 12+1 Units, 12 R 22.5 Available brand in stock
Rims : 12+1 Units, 9.00 x 22.5 steel rims. Jantas or Ako Brand.
Landing Gear : Mechanical operated by one side, two speed. Gos Brand.
Brake System : Two line air brake system acting on all wheels
Brake Chamber
1 axles with 2 units emergency brake chambers.
2 axle with 4 unit service brake chambers.
Electric System
24V, 2x7 + 1x15 pin sockets, according to SAE standard with ADR Adaptation
SABA Brand.
• 2 x Rear Stop Lights. - 4 x Side Lights.
• 2 x White Lights - 2 x Front Lights
• 2 x Registration Plate Lights - 2 x rotating Lights
Floor
Middle of platform and on the axles complete chequred sugar plate 6/7 mm
steel,edges of the axles are wood and steel ,From the gooseneck end to 1.axles
finishing area edges are 900 mm width,70 mm height hard wood.
Rear Loading Ramps
Hydraulic operated rear ramps with Electro pump for rear ramps hydraulic
funsion with cable push – button for remote cont.Rear ramps length 2800 mm width
900 mm,covered all steel and 20x40 mm thickness steel bars.
Color : Upon Request
Paint Application
Sand Blasting, Chemical cleaning, HYZINC covering, Epoxy covering and 2 coats
of acrylic paint.
TECHNICAL SPECIFICATIONS
Accessories
• 2 x 7 pcs of heavy duty lashing rings mounted on the outer frame mushroom type
• 4 x Certificated Expray mud flaps.
• 1 x Plastic water tank
• 2 x Wheel chocks and holders
• 2 x 7 Galvanized sides extensions brackets 250 mm + 250 mm
• 2 x Side Protections steel
• 1 x Tool box.
• 1 x spare Wheel carrier with 1 tire(on the gooseneck)

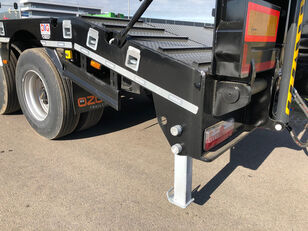

• 2 x Manual support Legs at the rear.
• 2 x Reflective tape and reflector sign at the rear and sides.
• 2 x Side extensions reflector
• 1 plaque places on bumper
